    Arduino uyumlu 12A. DC MOTOR SÜRÜCÜ, STEP MOTOR SÜRÜCÜ, MULTI POWER MODULE

    56.80 TL
    Arduino uyumlu 12A. DC MOTOR SÜRÜCÜ, STEP MOTOR SÜRÜCÜ, MULTI POWER MODULE
    Minimum stock qty: 1
    Satıcı Bilgileri
    Email: cop_tenekesi@outlook.com
    Firma Açıklaması:

    1990 Yılından bu yana elektronik kart tasarımı ve firmalara danışmanlık hizmeti sunmakta olan firmamız,Kendi sektöründe lider ve elektronik çözümlere ihtiyaç duyan yerli veya yabancı şirketlere, OEM ve ODM ürünler (kart, ürün ve sistem) sunmaktadır.

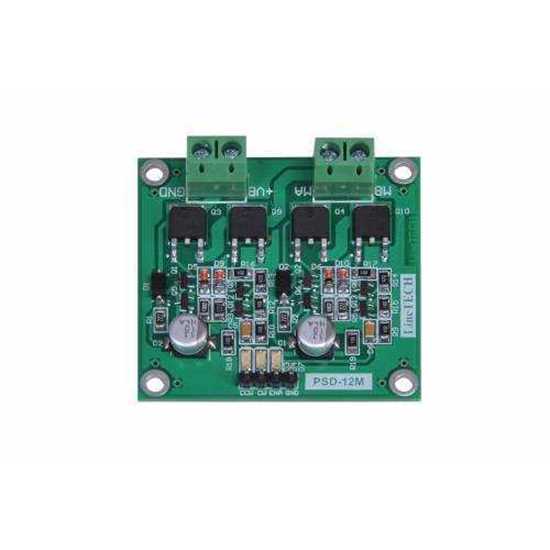

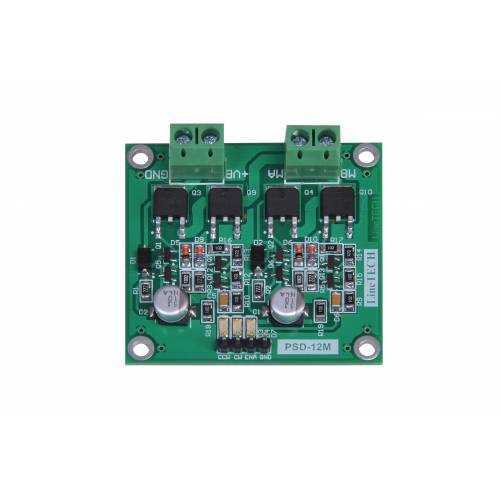

    PSD-12 is designed to drive high current brushed DC motor up to 12A continuously. It offers
    several enhancements such as support for both locked-antiphase and sign-magnitude PWM
    signal as well as using full solid state components which result in faster response time and
    eliminate the wear and tear of the mechanical relay.
    The PSD-12M has been designed with the capabilities and features of:
      ?  Bi-directional control for one brushed DC motor.
      ?  Support motor voltage ranges from 7V to 24V. (44V. Max)
      ?  Maximum current up to 17A continuous (without heatsink at 25°C) and 68A peak (10 second).
      ?  Current limiting at 68A.
      ?  Logic level input 3.3V and 5V.
      ?  Solid state components provide faster response time and eliminate the wear and tear of
          mechanical relay.
      ?  Fully HEXFET H-Bridge for better efficiency and no heat sink is required.
      ?  Speed control PWM frequency up to 40KHz (Actual output frequency is same as
          input frequency).
      ?  Support both locked-antiphase and sign-magnitude PWM operation.
      ?  Support TTL PWM from microcontroller.
      ?  SMD compatible.
      ?  Dimension: 49.0mm x 46.0mm.
